Red/Metallic Grey
Yellow/Metallic Grey
Blue/Metallic Grey

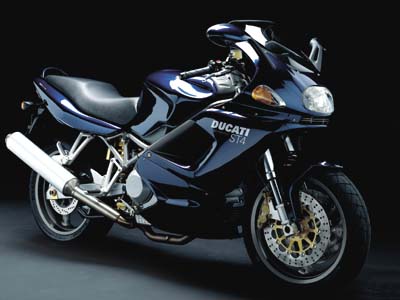

2002 Ducati ST4
|
Colors |
Red/Metallic Grey Yellow/Metallic Grey Blue/Metallic Grey |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis | Maximum Power | 77 kW - 105 HP @ 9000 rpm |
| Front Wheel | 3-spoke light alloy, 3.50 x17 | Maximum Torque | 89 Nm - 9 kgm @ 7500 rpm |
| Rear Wheel | 3-spoke light alloy 5.50 x17 | Dimensions | |
| Front Suspension | Showa 43 mm upside-down fully adjustable fork | Seat Height | 820 mm - 32.3 in |
| Rear Suspension | Progressive linkage with fully adjustable Sachs monoshock | Wheelbase | 1430 mm - 56.3 in |
| Front Brakes | 2 x 320 mm semi-floating discs, 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 215 Kg / 474 lbs |
| Transmission | Fuel Capacity | 21 l (including 6 l reserve) | |
| Gearbox | 6 speed | ||
| Engine | |||
| Type | L twin cylinder, 4 valve per cylinder Desmodromic; liquid cooled | ||
| Capacity | 916 cc | ||
| Bore/Stroke | 94x66 mm | ||
| Compression Ratio | 11:1 | ||
| Fuel System | Marelli electronic fuel injection, 50 mm throttle body | ||
