Jet Black
Acidic Yellow

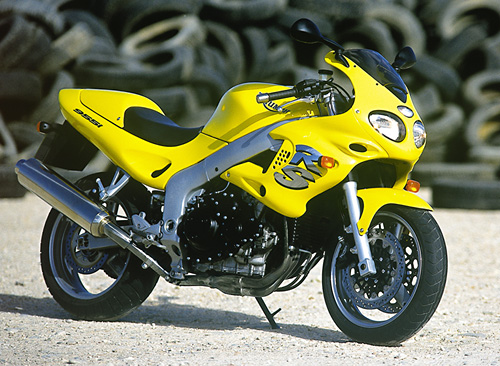

Triumph 2002 Sports Range - Sprint RS
|
Colors |
Jet Black Acidic Yellow |
|
| Cycle Parts | Performance | ||
| Frame | Aluminium beam perimeter | Maximum Power | 120PS (118bhp) at 9,100 rpm |
| Swingarm | Twin-sided, aluminium alloy | Maximum Torque | 100Nm (74ft.lbf) at 5,100 rpm |
| Front Wheel | Alloy 3 spoke, 17 x 3.5in, 120/70 ZR 17 tyre | Dimensions | |
| Rear Wheel | Alloy 3 spoke, 17 x 5.5in, 180/55 ZR 17 tyre | Length | 2120mm (83.5in) |
| Front Suspension | 43mm forks with adjustable pre-load | Width | 735mm (28.9in) |
| Rear Suspension | Monoshock with adjustable pre-load and rebound damping | Height | 1170mm (46.1in) |
| Front Brakes | Twin 320mm floating discs, 4 piston calipers | Seat Height | 805mm (31.7in) |
| Rear Brakes | Single 255mm disc, 2 piston caliper | Wheelbase | 1470mm (57.9in) |
| Transmission | Rake/Trail | 24.5° / 89mm | |
| Gearbox | 6 speed | Weight (Dry) | 199kg (438lb) |
| Engine | Fuel Capacity | 19.5 litres (5.1 gal US) | |
| Type | Liquid-cooled, DOHC, in-line 3-cylinder | ||
| Capacity | 955cc | ||
| Bore/Stroke | 79 x 65mm | ||
| Compression Ratio | 12.0:1 | ||
| Fuel System | Multipoint sequential electronic fuel injection | ||
