Red/Metallic Grey
Yellow/Metallic Grey
Blue/Metallic Grey
Silver/Metallic Grey
Black/Metallic Grey
Metallic blue/Metallic Grey
Metallic black/Metallic Grey
Dark (matt black)/Black

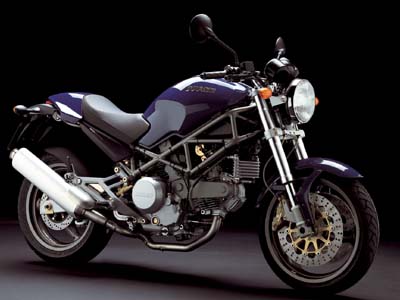

2002 Ducati Monster 750 i.e.
|
Colors |
Red/Metallic Grey Yellow/Metallic Grey Blue/Metallic Grey Silver/Metallic Grey Black/Metallic Grey Metallic blue/Metallic Grey Metallic black/Metallic Grey Dark (matt black)/Black |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis | Maximum Power | 47 kW - 64 HP @ 8750 rpm |
| Front Wheel | 3-spoke light alloy 3.50 x17 | Maximum Torque | 62 Nm - 6.3 Kgm @ 6500 rpm |
| Rear Wheel | 3-spoke light alloy 5,50 x17 | Dimensions | |
| Front Suspension | 43 mm upside-down fork | Seat Height | 770 mm / 30.3 in |
| Rear Suspension | Progressive linkage with Sachs adjustable monoshock | Wheelbase | 1440 mm - 56,7 in |
| Front Brakes | 2 x 320 mm discs, 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 179 kg /394 lbs |
| Transmission | Fuel Capacity | 15 l (including 3.5 l reserve) - Dark: 14 l (including 3 l reserve) | |
| Gearbox | 5 speed | ||
| Engine | |||
| Type | L twin cylinder, 2 valve per cylinder Desmodromic; air cooled | ||
| Capacity | 748 cc | ||
| Bore/Stroke | 88x61.5 mm | ||
| Compression Ratio | 9:1 | ||
| Fuel System | Marelli electronic fuel injection, 45 mm throttle body | ||
