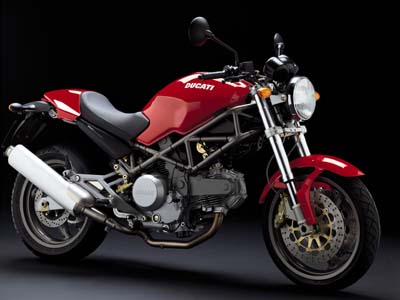

2002 Ducati Monster 620 i.e.
|
Colors |
Red/Metallic Grey Yellow/Metallic Grey blue/Metallic Grey silver/Metallic Grey black/Metallic Grey metallic blue/Metallic Grey metallic grey/Metallic Grey |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis | Maximum Power | 44.3 kW - 60 HP @ 9500 rpm |
| Front Wheel | 3-spoke light alloy 3.50 x17 | Maximum Torque | 53.3 Nm - 5.4 Kgm @ 6750 rpm |
| Rear Wheel | 3-spoke light alloy 4,50 x17 | Dimensions | |
| Front Suspension | 43 mm upside-down fork | Seat Height | 770 mm / 30.3 in |
| Rear Suspension | Progressive linkage with Sachs adjustable monoshock | Wheelbase | 1440 mm - 56,7 in |
| Front Brakes | 2 x 320 mm discs, 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 177 kg /389 lbs |
| Transmission | Fuel Capacity | 15 l (including 3.5 l reserve) | |
| Gearbox | 5 speed | ||
| Engine | |||
| Type | L twin cylinder, 2 valve per cylinder Desmodromic; air cooled | ||
| Capacity | 618 cc | ||
| Bore/Stroke | 80x61.5 mm | ||
| Compression Ratio | 10.7:1 | ||
| Fuel System | Marelli electronic fuel injection, 45 mm throttle body | ||
