Red/Metallic Grey
Yellow/Metallic Grey
Black/Metallic Grey
Metallic Grey/Red

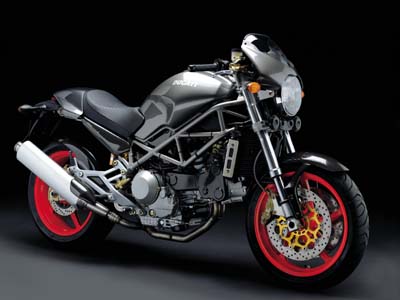

2002 Ducati Monster S4
|
Colors |
Red/Metallic Grey Yellow/Metallic Grey Black/Metallic Grey Metallic Grey/Red |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis | Maximum Power | 74 kW - 101 HP @ 8750 rpm |
| Front Wheel | 5-spoke light alloy 3.50 x17 | Maximum Torque | 92 Nm - 9.3 Kgm @ 7000 rpm |
| Rear Wheel | 5-spoke light alloy 5,50 x17 | Dimensions | |
| Front Suspension | Showa upside-down fully adjustable 43 mm fork | Seat Height | 803 mm / 31.6 in |
| Rear Suspension | Progressive linkage with Sachs fully adjustable monoshock with piggy back, aluminum swing-arm | Wheelbase | 1440 mm/56,7 in |
| Front Brakes | 2 x 320 mm discs, 4-piston caliper | Rake | 24� |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 193 kg /423 lbs |
| Transmission | Fuel Capacity | 15 l (including 3.5 l reserve) | |
| Gearbox | 6 speed | ||
| Engine | |||
| Type | L twin cylinder, 4 valve per cylinder Desmodromic; liquid cooled | ||
| Capacity | 916 cc | ||
| Bore/Stroke | 94x66 mm | ||
| Compression Ratio | 11:1 | ||
| Fuel System | Marelli electronic fuel injection, 50 mm throttle body | ||
