Yellow / Metallic Grey
Red / Metallic Grey
Metallic Grey / Red

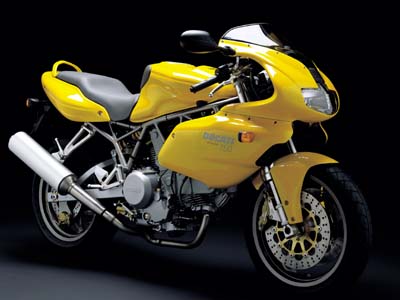

2002 Ducati 750ss
|
Colors |
Yellow / Metallic Grey Red / Metallic Grey Metallic Grey / Red |
|
| Cycle Parts | Full or Half Fairing | Performance | |
| Frame | Tubular steel trellis | Maximum Power | 47 kW - 64 HP @ 8250 rpm |
| Front Wheel | 3-spoke light alloy 3.50x17 | Maximum Torque | 60 Nm - 6.1 kgm @ 6000 rpm |
| Rear Wheel | 3-spoke light alloy 4.50 x 17 | Dimensions | |
| Front Suspension | Showa 43 mm upside-down fork | Seat Height | 815 mm - 32.1 in |
| Rear Suspension | Sachs fully adjustable shock with position-sensitive damping | Wheelbase | 1405 mm / 55.3 in |
| Front Brakes | 2 semi-floating 320 mm dia. steel discs; 30/34 mm 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 183 kg - 403 lbs |
| Transmission | Fuel Capacity | 16 l (including 4 l reserve) | |
| Gearbox | 5 speed | ||
| Engine | |||
| Type | L twin cylinder, 2 valve per cylinder Desmodromic; air cooled | ||
| Capacity | 748 cc | ||
| Bore/Stroke | 88x61.5 mm | ||
| Compression Ratio | 9:1 | ||
| Fuel System | Marelli electronic fuel injection, 45 mm throttle body | ||
