Red / Metallic Grey
Yellow / Metallic Grey
Titanium gray / Red

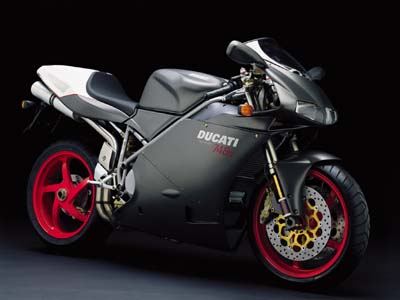

2002 Ducati 748s
|
Colors |
Red / Metallic Grey Yellow / Metallic Grey Titanium gray / Red |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis | Maximum Power | 71 kW - 97 HP @ 11000 rpm |
| Front Wheel | Marchesini 5-spoke light alloy 3.50 x 17 | Maximum Torque | 73 Nm - 7.4 kgm @ 9000 rpm |
| Rear Wheel | Marchesini 5-spoke light alloy, 5.50 x 17 | Dimensions | |
| Front Suspension | Showa with TiN upside-down fully adjustable fork | Seat Height | 790 mm - 31.1 in |
| Rear Suspension | Progressive linkage with adjustable Showa monoshock | Wheelbase | 1410 mm - 55.5 in |
| Front Brakes | 2 x 320 mm semi-floating discs, 4-piston 4-pad calipers | Rake | 23,5° ÷ 24,5° |
| Rear Brakes | 220 mm disc, 2-piston caliper | Weight (Wet) | 196 kg - 432 lbs |
| Transmission | Fuel Capacity | 17 L (including 4 L reserve) | |
| Gearbox | 6 speed | ||
| Engine | |||
| Type | L twin cylinder, 4 valve per cylinder Desmodromic; liquid cooled | ||
| Capacity | 748 cc | ||
| Bore/Stroke | 88x61.5 mm | ||
| Compression Ratio | 11.5:1 | ||
| Fuel System | Marelli electronic fuel injection, 50 mm throttle body | ||
