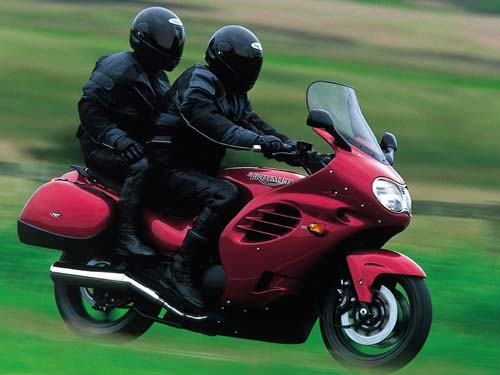

2001 Triumph Trophy 1200
|
Colors |
Platinum
Sunset Red
Pacific Blue
|
|
| Cycle Parts | Performance | ||
| Frame | Micro alloyed high tensile steel spine | Maximum Power | 108PS (107bhp) at 9,000 rpm |
| Swingarm | Twin sided, aluminium alloy with eccentric chain adjuster | Maximum Torque | 104Nm (77ft-lbf) at 5,000 rpm |
| Front Wheel | Alloy 3 spoke, 17 x 3.5in | Dimensions | |
| Rear Wheel | Alloy 3 spoke, 17 x 5.5in | Length | 2152mm (84.7in) |
| Front Suspension | 43mm forks with triple rate springs | Width | 790mm (31.1in) |
| Rear Suspension | Monoshock with adjustable preload and rebound damping | Height | 1430mm (56.3in) |
| Front Brakes | Twin 310mm discs, 4 piston calipers | Seat Height | 790mm (31.1in) |
| Rear Brakes | Single 255mm disc, 2 piston caliper | Wheelbase | 1490mm (58.7in) |
| Transmission | Rake/Trail | 27° / 105mm | |
| Gearbox | 6 speed | Weight (Dry) | 235kg (518lb) |
| Engine | Fuel Capacity | 25 litres (6.6 gal US) | |
| Type | Liquid-cooled, DOHC, in-line 4-cylinder | ||
| Capacity | 1180cc | ||
| Bore/Stroke | 76 x 65mm | ||
| Compression Ratio | 10.6:1 | ||
| Fuel System | 4 x 36mm flat slide CV carburettors | ||
