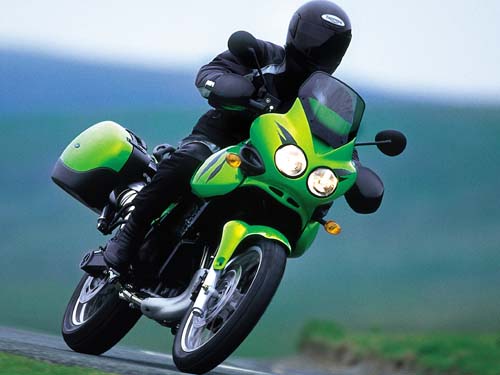

2001 Triumph Tiger
|
Colors |
Jet Black
Roulette Green
|
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel perimeter | Maximum Power | 105PS (104bhp) at 9,500 rpm |
| Swingarm | Twin sided, aluminium alloy with eccentric chain adjuster | Maximum Torque | 92Nm (67ft-lbf) at 4,400 rpm |
| Front Wheel | 36 spoke, 19 x 2.5in | Dimensions | |
| Rear Wheel | 40 spoke, 17 x 4.25in | Length | 2175mm (85.6in) |
| Front Suspension | 43mm forks with triple rate springs | Width | 860mm (33.8in) |
| Rear Suspension | Monoshock with remotely adjustable preload and rebound damping | Height | 1345mm (52.9in) |
| Front Brakes | Twin 310mm discs, 2 piston calipers | Seat Height | 840 – 860mm (33.1 - 33.8in) |
| Rear Brakes | Single 285mm disc, 2 piston caliper | Wheelbase | 1550mm (61.0in) |
| Transmission | Rake/Trail | 28° / 92mm | |
| Gearbox | 6 speed | Weight (Dry) | 215kg (474lb) |
| Engine | Fuel Capacity | 24 litres (6.4 gal US) | |
| Type | Liquid-cooled, DOHC, in-line 3-cylinder | ||
| Capacity | 955cc | ||
| Bore/Stroke | 79 x 65mm | ||
| Compression Ratio | 11.2:1 | ||
| Fuel System | Multipoint sequential electronic fuel injection | ||
