Yellow/Metallic Grey
Matt Grey/Metallic Grey
Red/Metallic Grey

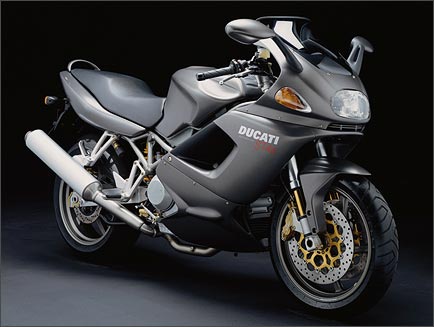

2001 Ducati ST4s
|
Colors |
Yellow/Metallic Grey
Red/Metallic Grey |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis frame | Maximum Power | 88KW - 117HP @ 8750 rpm |
| Front Wheel | Five spoke light alloy, 3.50x17 | Maximum Torque | 98 Nm - 10 Kgm @ 7000 rpm |
| Rear Wheel | Five spoke light alloy 5.50x17 | Dimensions | |
| Front Suspension | Showa with TiN upside-down fork fully adjustable | Seat Height | 820 mm |
| Rear Suspension | Progressive linkage with Ohlins fully adjustable monoshock with remote control | Wheelbase | 1430 mm |
| Front Brakes | 2 x 320 mm semi-floating discs, 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight | 212 Kg / 467 lbs. |
| Transmission | Fuel Capacity | 21 l (6 l reserve) | |
| Gearbox | 6 speed | ||
| Engine | |||
| Type | L twin cylinder, 4 valve, Desmodromic, liquid cooled | ||
| Capacity | 996 cc | ||
| Bore/Stroke | 98 x 66 | ||
| Compression Ratio | 9.2:1 | ||
| Fuel System | Marelli electronic injection, 50 mm throttle body | ||
