Red/Metallic Grey
Yellow/Metallic Grey
Black/Metallic Grey
Metallic grey/Fluo Red
Cromo/Metallic Grey/Black

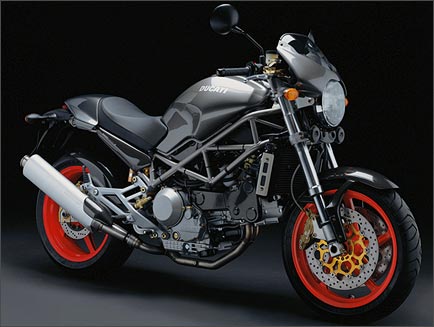

2001 Ducati Monster S4
|
Colors |
Red/Metallic Grey Yellow/Metallic Grey Black/Metallic Grey Metallic grey/Fluo Red Cromo/Metallic Grey/Black |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis frame | Maximum Power | 74 kW - 101 HP @ 8750 rpm |
| Front Wheel | Five spoke light alloy 3.50x17 | Maximum Torque | 92 Nm - 9.3 Kgm @ 7000 rpm |
| Rear Wheel | Five spoke light alloy 5,50x17 | Dimensions | |
| Front Suspension | Showa upside-down fork 43 mm fully adjustable | Seat Height | 803 mm |
| Rear Suspension | Progressive linkage with Sachs fully adjustable monoshock. Aluminium swinging arm | Wheelbase | 1440 mm |
| Front Brakes | 2 x 320 mm discs, 4-piston caliper | Rake | 24° |
| Rear Brakes | 245 mm disc, 2-piston caliper | Weight (Wet) | 193 kg 423 lbs. |
| Transmission | Fuel Capacity | 16.5 l (3 l reserve) | |
| Gearbox | 6 speed with straight gears | ||
| Engine | |||
| Type | L twin cylinder, 4 valve Desmodromic, liquid cooled | ||
| Capacity | 916 cc | ||
| Bore/Stroke | 94 x 68 | ||
| Compression Ratio | 11:1 | ||
| Fuel System | Marelli Electronic Injection, 50 mm throttle body | ||
