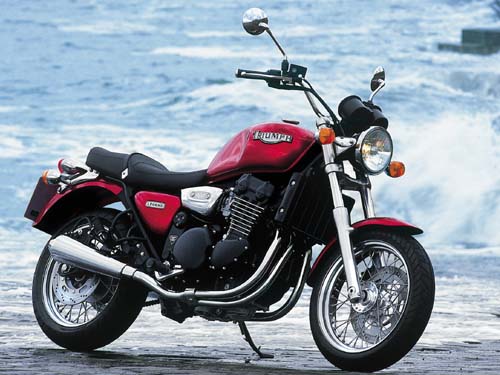

2001 Triumph Legend TT
|
Colors |
Cardinal Red
Imperial Green
Obsidian Black
|
|
| Cycle Parts | Performance | ||
| Frame | Micro alloyed high tensile steel spine | Maximum Power | 70PS (69bhp) at 8,000 rpm |
| Swingarm | Twin sided, aluminium alloy | Maximum Torque | 69.2Nm (51ft-lbf) at 4,000 rpm |
| Front Wheel | 36 spoke, 17 x 3.5in | Dimensions | |
| Rear Wheel | 40 spoke, 17 x 4.25in | Length | 2320mm (91.3in) |
| Front Suspension | 43mm forks with triple rate springs | Width | 860mm (33.8in) |
| Rear Suspension | Monoshock with adjustable preload | Height | 1340mm (52.8in) |
| Front Brakes | Single 320mm disc, 2 piston caliper | Seat Height | 725mm (28.5in) |
| Rear Brakes | Single 285mm disc, 2 piston caliper | Wheelbase | 1580mm (62.2in) |
| Transmission | Rake/Trail | 27° / 106mm | |
| Gearbox | 5 speed | Weight (Dry) | 215kg (473lb) |
| Engine | Fuel Capacity | 15 litres (4 gal US) | |
| Type | Liquid cooled, DOHC, in-line 3-cylinder | ||
| Capacity | 885cc | ||
| Bore/Stroke | 76 x 65mm | ||
| Compression Ratio | 10:1 | ||
| Fuel System | 3 x 36mm flat slide CV carburettors | ||
