Scarlet Red / Silver
Forest Green / Silver

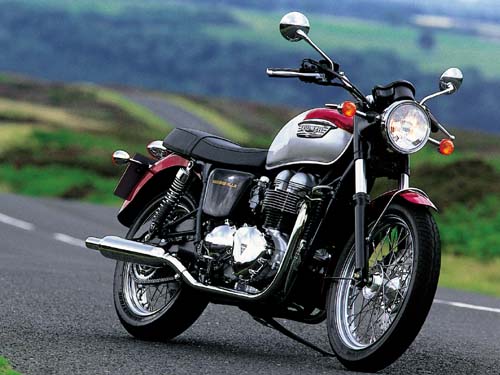

2001 Triumph Bonneville
|
Colors |
Scarlet Red / Silver
Forest Green / Silver
|
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel cradle | Maximum Power | 62PS (61bhp) at 7,400 rpm |
| Swingarm | Twin sided, tubular steel | Maximum Torque | 60Nm (44.3 ft-lbf) at 3,500 rpm |
| Front Wheel | Spoked, 19 x 2.5in | Dimensions | |
| Rear Wheel | Spoked, 17 x 3.5in | Length | 2250mm (88.6in) |
| Front Suspension | 41mm forks | Width | 860mm (33.8in) |
| Rear Suspension | Chromed spring twin shocks with adjustable preload | Height | 1105mm (43.5in) |
| Front Brakes | Single 310mm disc, 2 piston caliper | Seat Height | 775mm (30.5in) |
| Rear Brakes | Single 255mm disc, 2 piston caliper | Wheelbase | 1493mm (58.8in) |
| Transmission | Rake/Trail | 29° / 117mm | |
| Gearbox | 5 speed | Weight (Dry) | 205kg (451lb) |
| Engine | Fuel Capacity | 16 litres (4.3 gal US) | |
| Type | Air-cooled, DOHC, 360° parallel twin | ||
| Capacity | 790cc | ||
| Bore/Stroke | 86 x 68mm | ||
| Compression Ratio | 9.2:1 | ||
| Fuel System | Twin carburettors, with throttle position sensor and electric carburettor heaters | ||
