Red "Anniversary" / Metallic Grey
Yellow / Metallic Grey

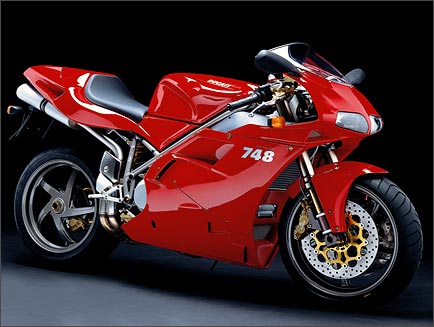

2001 Ducati 748S/748
|
Colors |
Red "Anniversary" / Metallic Grey Yellow / Metallic Grey |
|
| Cycle Parts | Performance | ||
| Frame | Tubular steel trellis frame | Maximum Power | 71kW - 97 HP @ 11000 rpm |
| Front Wheel | Marchesini 5-spoke (3-spoke for 748) light alloy, 3.50 x 17 | Maximum Torque | 73 Nm - 7.4 Kgm @ 9000 rpm |
| Rear Wheel | Marchesini 5-spoke (3-spoke for 748) light alloy, 5.50 x 17 | Dimensions | |
| Front Suspension | Showa (with TiN for 748S) upside-down fork fully adjustable | Seat Height | 790 mm |
| Rear Suspension | Progressive linkage with adjustable monoshock (Showa for 748S) | Wheelbase | 1410 mm |
| Front Brakes | 2 x 320 mm semi-floating discs, 4-piston caliper | Rake | 23,5° - 24,5° (748S)/24° (748) |
| Rear Brakes | 220 mm disc, 2-piston caliper | Weight | 196 kg / 432 lbs. |
| Transmission | Fuel Capacity | 17 l (4 l reserve) | |
| Gearbox | 6 speed | ||
| Engine | |||
| Type | L twin cylinder, 4 valve Desmodromic, liquid cooled | ||
| Capacity | 748cc | ||
| Bore/Stroke | 88 x 61.5 mm | ||
| Compression Ratio | 11.5:1 | ||
| Fuel System | Marelli Electronic Injection, 50 mm throttle body | ||
